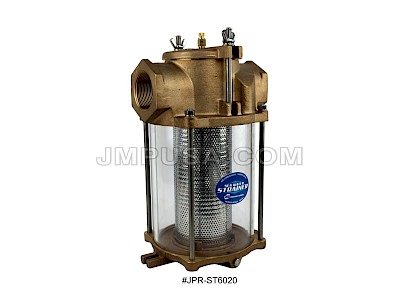

JMP JPR-ST6020 Raw Water Strainer – 2.5"
Product features
Durable cast bronze construction
Heavy-duty stainless steel filter basket with chrome-plated mesh
Easy to install
Easy to service and clean
Protects pumps and engines
Strong, transparent cylinder for easy visual inspection
O-ring seals provide improved sealing for high-pressure applications
Sacrificial zinc anode
Wing nut for quick access
Centre support rods
Air vent plug
Product information & Technical specifications
Inlet/outlet connection size: 2.5" NPT pipe thread
Top housing: Bronze
Bottom housing: Bronze
Body: Stainless steel
Replacement filter basket code: FIL000502 (2 mm mesh)
Replacement anode code: ZEN000101
Seal: O-ring
Dimensions
Overall dimensions (A × B × C): 260 mm × 445 mm × 275 mm
A: Top housing width/diameter
B: Height
C: Bottom housing width/diameter
Cylinder (Diameter × Height): 180 mm × 190 mm
Weight
Approximate weight: 18.0 kg
Peformance table - Flow rate
Bar 500rpm 1000rpm 1800rpm 2000rpm
0 175 L/Min 325 L/Min 591 L/Min 651 L/Min
1 155 L/Min 277 L/Min 566 L/Min 591 L/Min
2 115 L/Min 228 L/Min 482 L/Min 542 L/Min
3 33 L/Min 116 L/Min 351 L/Min 394 L/Min
Max 3.2 bar 3.6 bar 4.2 bar
