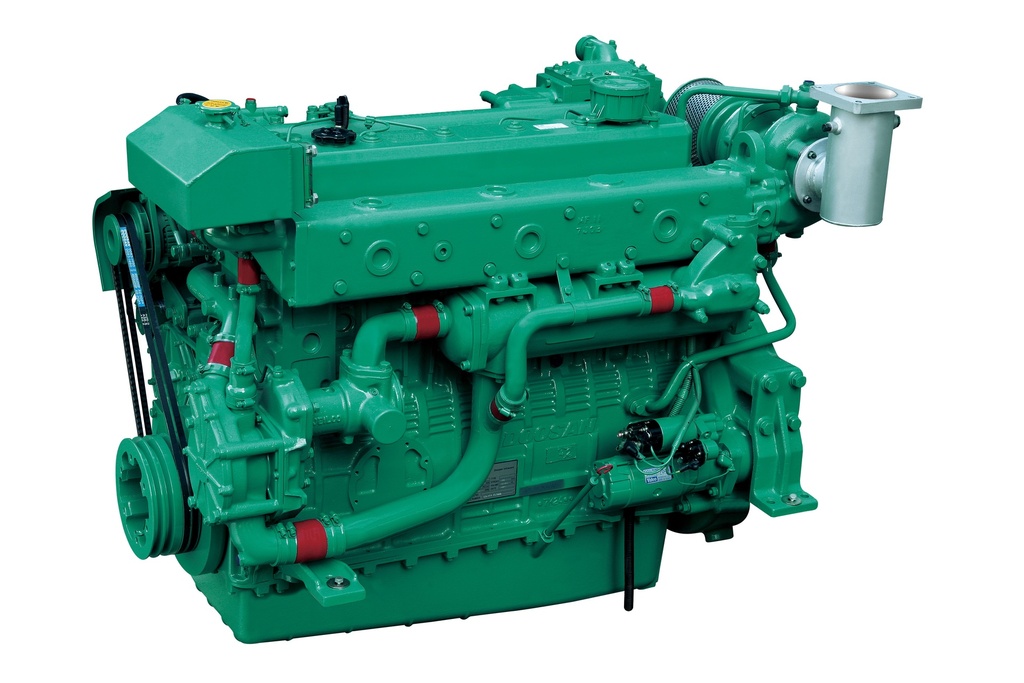

Doosan Hyundai MD 196 TI ( 320 hp ) marine diesel engine
DOOSAN Hyundai MO 196 TI marine diesel engine
Technical specifications
Maximum power: 320 hp
Continuous power rating: 320 hp
Engine speed: 2000 rpm
Displacement: 11 litres
Weight: 1009 kg
Standard equipment
Heat exchanger cooling system or keel cooling configuration
Water-cooled exhaust manifolds
Dry exhaust elbows
Mechanical fuel injection system
50 A / 24 V alternator
24 V / 6 kW starter motor
24 V engine electrical system
Doosan 24 V instrument panel with audible and visual alarms (engine room installation)
SAE I flywheel housing
SAE 14 flywheel
Operation and maintenance manuals included
Certifications
Engine type approved according to IMO MARPOL Annex II
Optional equipment available
Additional 24 V control panel with 15 m extension cable for bridge installation
6 pcs engine mounting rubber mounts
Hydraulic Dong DMTP 5100 marine gearbox installed on engine, including:
Flexible drive plate
Oil pressure gauge
Propeller shaft flange
Gearbox ratios available:
1.76:1
1.83:1
1.93:1
2.48:1
3.08:1
3.46:1
Power capacity: 493 hp at 2100 rpm
Hydraulic pump take-off adapter:
Torque capacity: 590 Nm
Power capacity: 150 hp at 1800 rpm
Alternative:
Hydraulic Dong DMTP 170 HL marine gearbox installed on engine, including:
Flexible drive plate
Oil pressure gauge
Propeller shaft flange
Gear ratios available:
4.08:1
4.48:1
Power capacity: 539 hp at 2300 rpm
