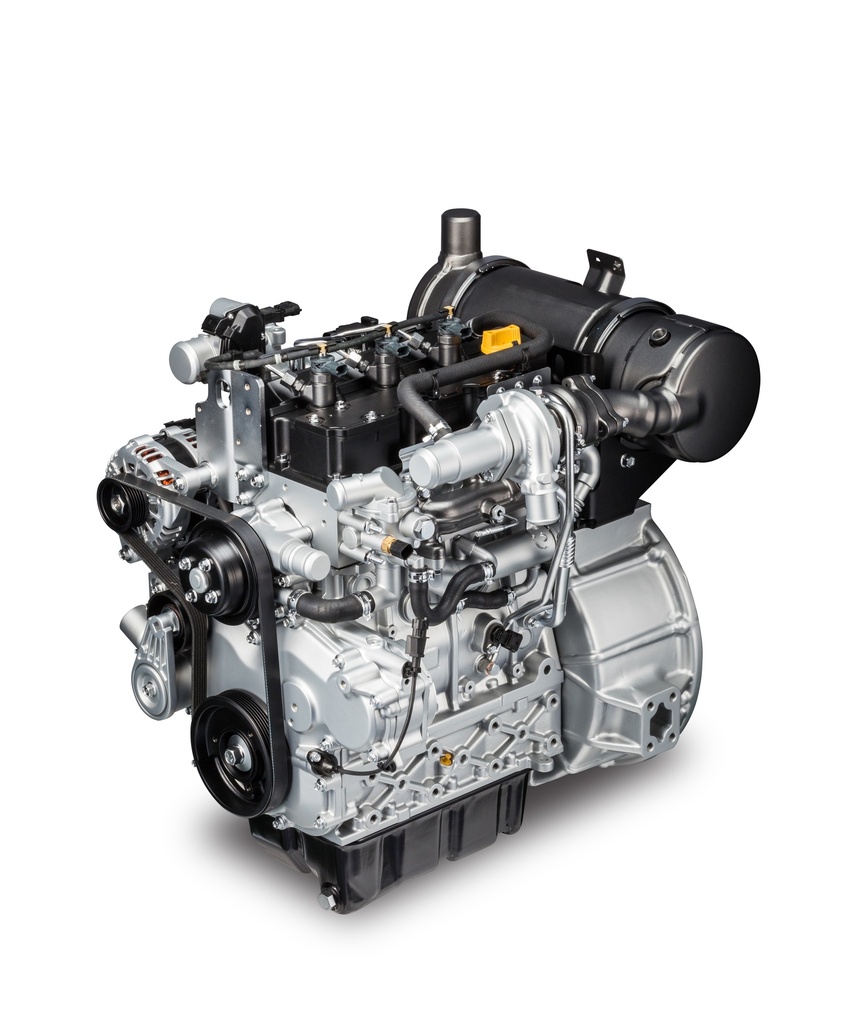

Doosan HYUNDAI D18-45 kW diesel engine
1 × DOOSAN D18 diesel engine – Stage V specification
Technical specifications
Maximum power: 45 kW (60.4 HP)
Rated speed: 2,600 rpm
Maximum torque: 225 Nm at 1,800 rpm
Displacement: 1.79 L
Weight: 270 kg (power pack)
Oil change interval: 1,000 hours
Standard equipment
Bosch Common Rail fuel injection system
12 V / 140 A alternator
12 V starter motor
12 V electrical system
Engine wiring harness
Engine sensors installed:
Oil pressure sensor
Temperature sensor
ATS-side sensors
SAE 4 flywheel housing & SAE 10 flywheel
(or SAE 5 & SAE 7.5 option)
Timing gear housing prepared for hydraulic pump installation
(e.g. DIN 9T / 130 Nm)
ATS (After-Treatment System) installed: DOC + DPF
(No urea/AdBlue tank required)
Optional equipment
Electric fuel transfer pump with fuel pre-filter
Fuel pre-filter
Air filter installed
Radiator and fan (blowing type)
Mounting bracket package:
Mounting brackets
Radiator support brackets
Hoses installed
After-treatment wiring harness
Available directly from stock.
