TWIN DISC TECHNODRIVE- HYDRAULIC CLUTCHES

Technodrive is a factory established in 1973, located in S.M. Decima (Bologna, Italy), that manufactures marine and industrial gearboxes as well as hydraulic pump drives. In 1999, the company became part of the American Twin Disc Corporation. The factory is known for its high-quality and durable products.

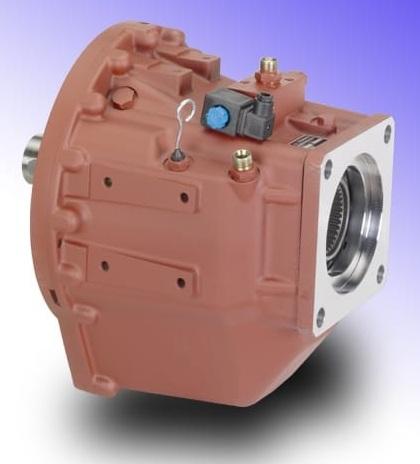

Twin Disc Technodrive hydraulic release clutch
A hydraulically operated hydraulic release clutch with a DC solenoid selector is suitable for engaging and disengaging hydraulic pumps (on/off control).
- Configuration: Cylindrical input shaft; output options include either a cylindrical shaft or a female splined shaft for hydraulic pump connection. Available with SAE 3, 2, or 1 housings, or as a free-standing version.
- Input rotation direction: either clockwise or counterclockwise (must be specified when ordering).
- Cooling system: oil requires cooling via an external heat exchanger.
Full service and spare parts support.
Model | Max torque Nm | Max speed rpm | Weight kg |
---|---|---|---|
PFI 60 | 600 | 3200 | 80 |
PFI 120 | 1200 | 3000 | 100 |
